Large clamps:
The large clamps family allows measures on higher currents, up to 1600A for the “16” types, 3200 for the “32” types and up to 7500Adc for the HC and PC Hall Effects clamps. Their design allows their use on busbars.

E.H.P 16 models:

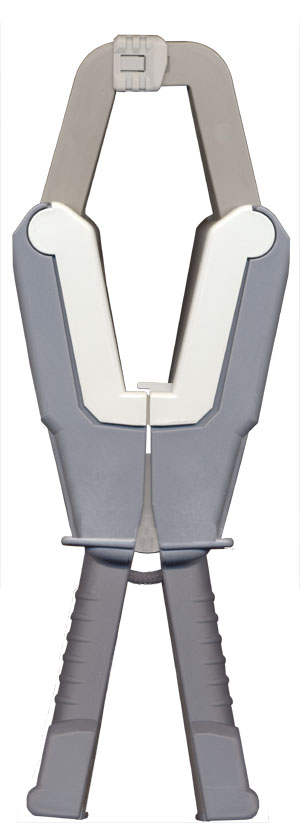

E 16 Primary : 1A to 1600A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 54mm Starting at: 264 euros

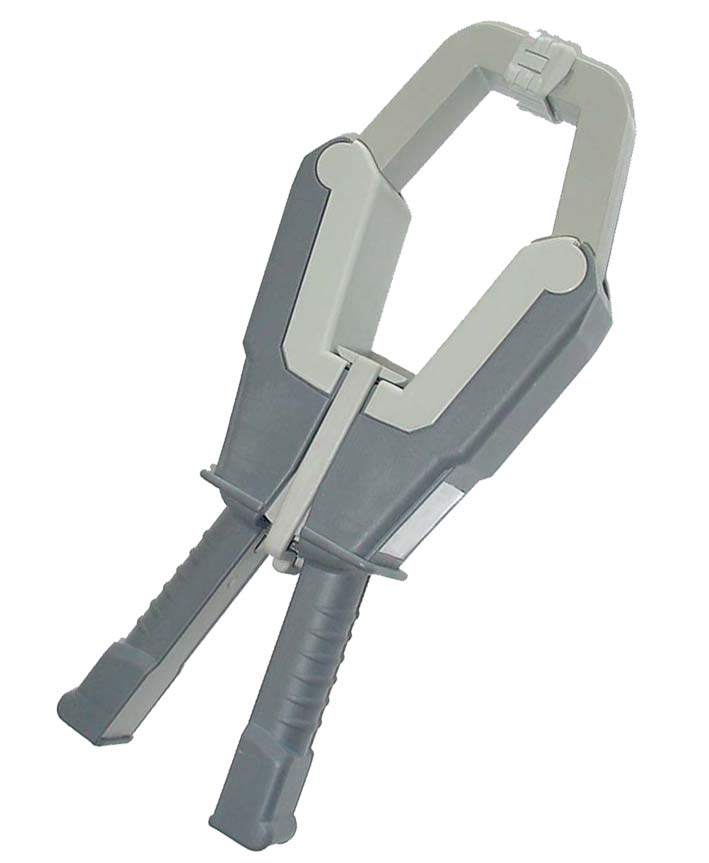

H 16 Primary : 1A to 1600A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 67mm Starting at: 320 euros

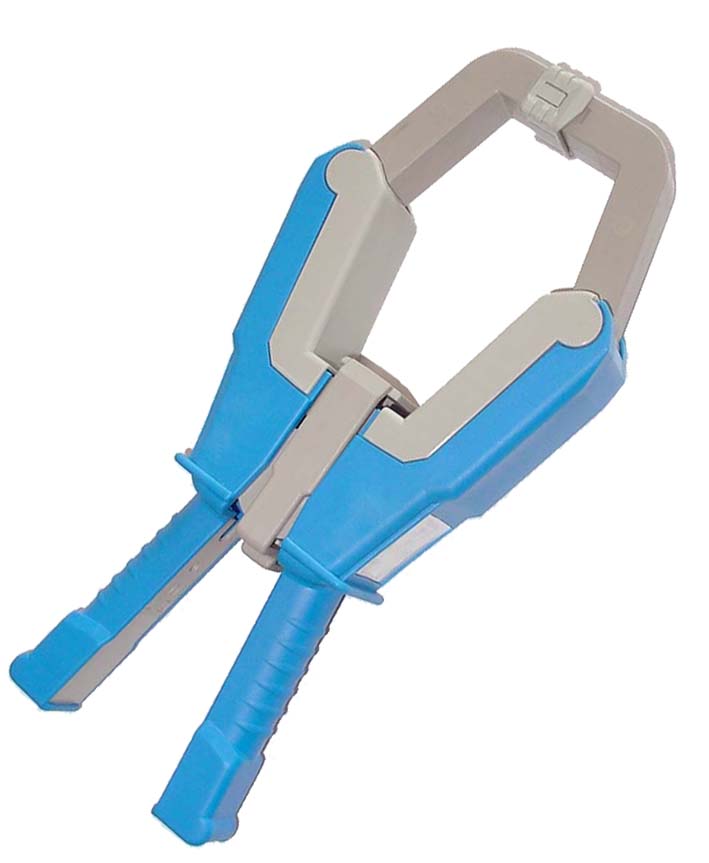

P 16 Primary : 1A to 1600A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 80mm Starting at: 377 euros

E.H.P 32 models:

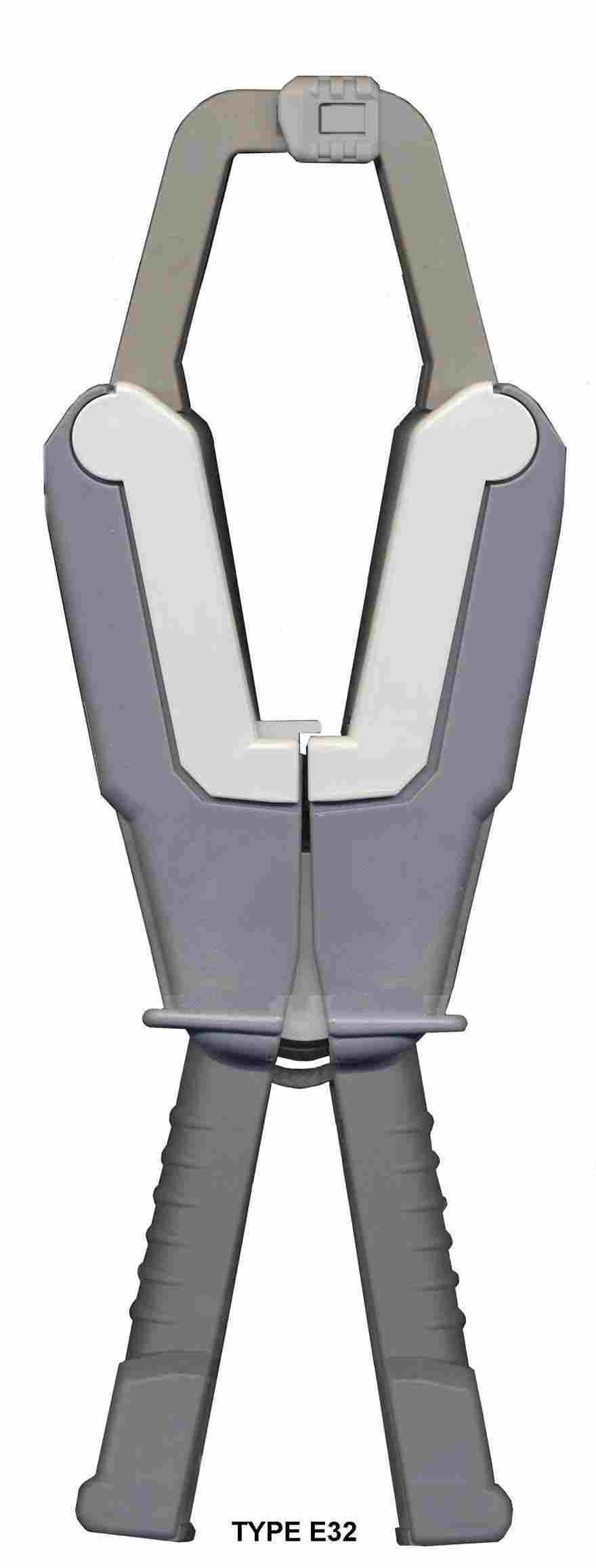

E 32 Primary : 1A to 3200A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 56mm Starting at: 259 euros

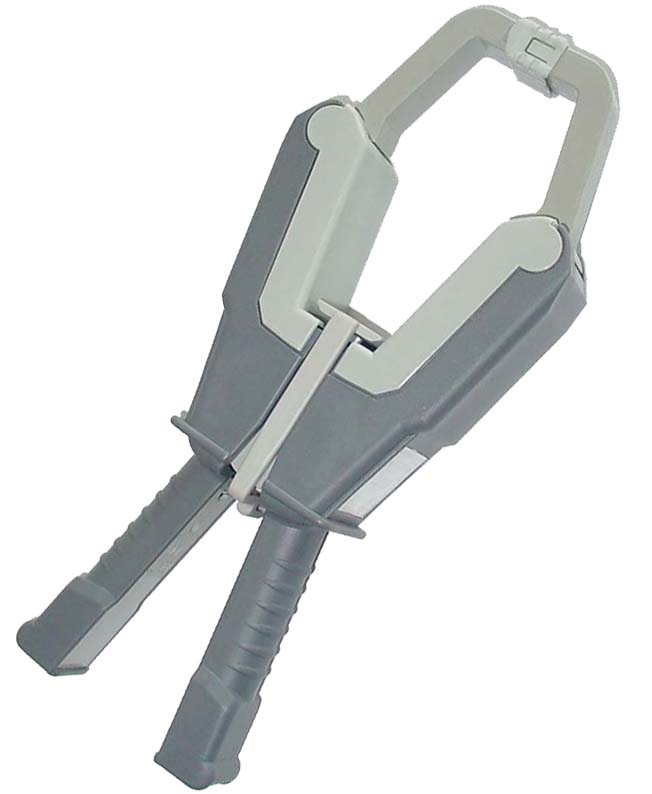

H 32 Primary : 1A to 3200A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 70mm Starting at: 336 euros

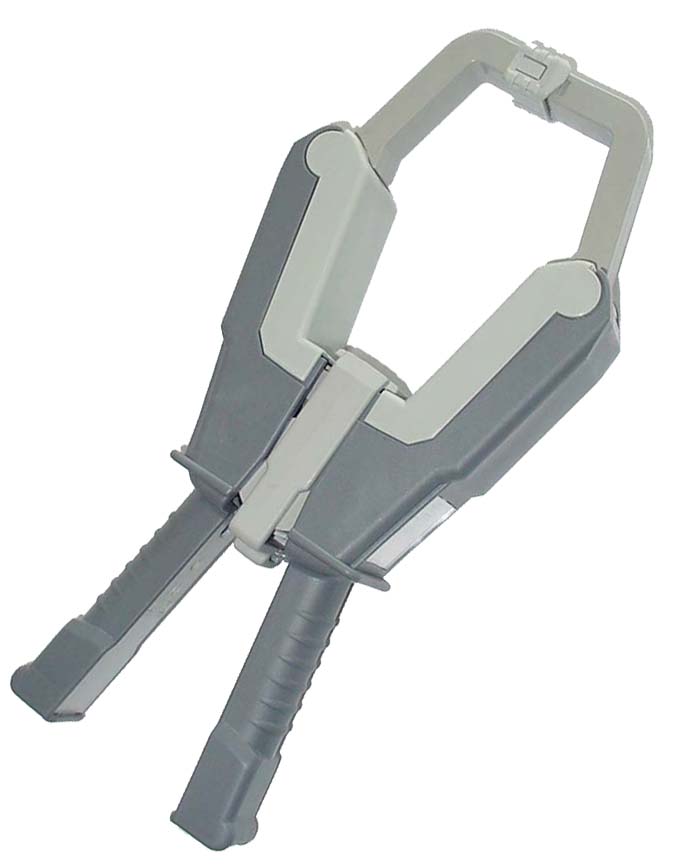

P 32 Primary : 1A to 3200A Output : Aac or Vac or Vdc Mono or multi ratio Cable diameter 83mm Starting at: 406 euros

H.3C et P.3C models:

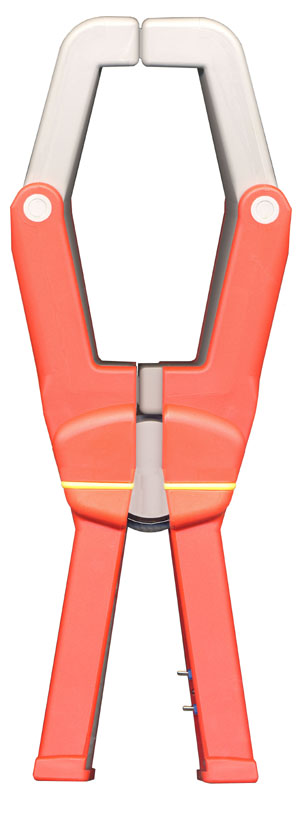

H.3C Primary : de 1A à 5000A Output : 1V or 2V Cable diameter 72mm Power supply: from 9Vdc to 18Vdc, or using 9V batteries (autonomy ~ ca 72h) Starting at : 661 euros

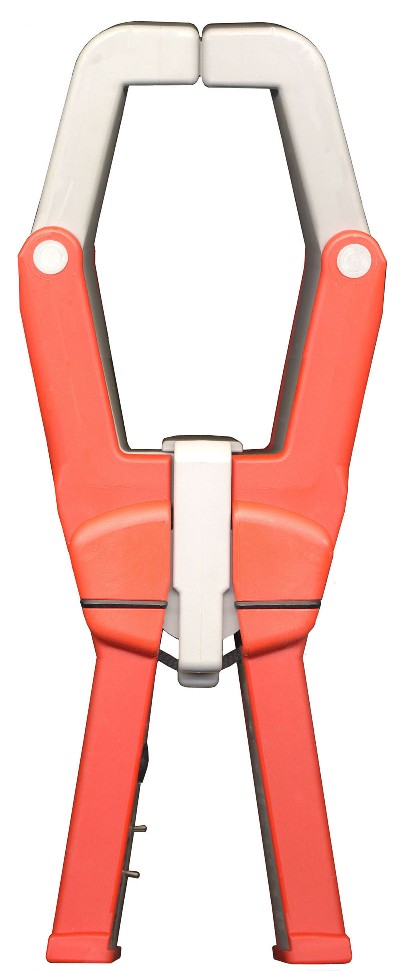

P.3C Primary : de 1A à 7500A Output : 1V or 2V Cable diameter 82mm Power supply: from 9Vdc to 18Vdc, or using 9V batteries (autonomy ~ ca 72h) Starting at : 730 euros

---
